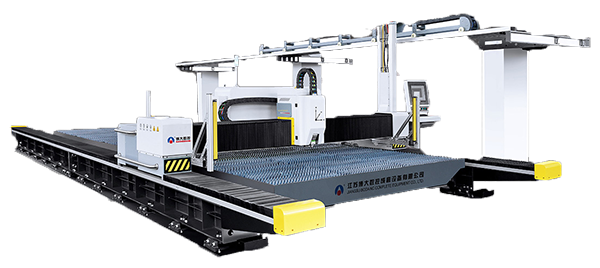

New Generation CNC Gantry Style Laser Cutting Machine_Jiangsu Boda CNC Complete Equipment Co., Ltd.

Product parameter

20~30 % Work efficiency increases linearly
30-50 % Artificial Reduction

1-5 % Improve plate utilization

Reduce energy consumption Effectively reduce energy consumption such as gas, electricity, wearing parts, etc.

Special design of large gantry rack No matter how powerful the rack is, it will not be deformed!

Specially designed for cutting **5*21m large thin and medium plates 3-35**mm!

Design

Longitudinal use of linear guide bilateral drive system enhances the accuracy and stability of the machine during operation. The structure of the bed is simple and lightweight, with low failure probability and convenient and quick maintenance.
Structure

The bed and the worktable are independent mechanisms. The bed is tempered and stress-relieved as a whole. The bed is less deformed by heat and affects the accuracy. and accuracy.
Features

Safety light curtains are used in the positive and negative directions of the longitudinal guide rail to effectively ensure the safety of operators.

A strong R&D team ensures the quality and high technology of the equipment;

Sophisticated equipment and complete technology ensure the accuracy of the equipment;

Strict on-site management and testing ensure its excellent workmanship;

The perfect after-sales service team ensures the stable operation of the equipment;

Product core parameters

Name	Parameter value	Name	Parameter value
Host	BDLC 4000S/4500S/5000S/6000S	Precision rack and pinion	Taiwan YYC/Germany Atlanta
Precision planetary reducer	Nippon Shinpo/Germany Alpha	Precision Linear Guide	Taiwan Shanghai Bank/Intime/Japan THK
Laser cutting head	Jiaqiang/Wan Shunxing/Precitec	Servo motor	Panasonic / Yaskawa / Beckhoff
Bed, control cabinet, console	Broad	Laser generator	Raycus/Maxphotonics/IPG/TRUMPF/
Circulating chiller	Fly together	Auxiliary gas control system	Broad

Customized hotline：+86-138-0150-2230

Boda Product Video Demonstration

Laser, big gantry! When you need laser cutting and are limited to the limited processing range and thickness of desktop lasers, BODA large-format high-speed gantry laser cutting machines are tailor-made for you! The ultra-large processing range is specially designed for 3-35mm cutting of large thin and medium plates with a maximum of 5*21m! Mainly used in machinery, shipbuilding, locomotives, pressure vessels and other industries.
