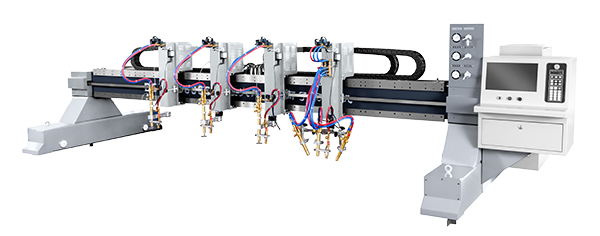

CNC Flame Cutting Machine_Jiangsu Boda CNC Complete Equipment Co., Ltd.

Product parameter

20~30 % Work efficiency increases linearly
30-50 % Artificial Reduction

1-5 % Raw Material Savings

Reduce energy consumption Effectively reduce energy such as gas, electricity, and wearing parts consume

22 years of research5 technology upgrades

Export to 40 countries, 50 4S stores around the world, 10000 users to witness together!

design

The wide longitudinal walking cart is longer and heavier than those of other manufacturers, ensuring the stability of vertical high-speed walking.
structure

The structure is stable, heavy and durable. The structural parts are tempered to remove the internal stress, and the imported high-precision gantry pentahedron machining center is used for one-time positioning processing, which has high strength, rigidity and precision.
Features

The wide vertical walking cart is longer and heavier than other manufacturers, Ensure the stability of vertical high-speed walking.

A strong R&D team ensures the quality and technology of the equipment;

Sophisticated equipment and complete technology ensure the accuracy of the equipment;

Strict on-site management and testing ensure its excellent workmanship;

The perfect after-sales service team ensures the stable operation of the equipment;

Product core parameters

name	parameter value	name	parameter value
single/double drive	bilateral drive	gauge	3000mm-9000mm
Effective cutting length	Track length minus 3000mm	Effective cutting width	2000mm-8000mm
CNC system	BODA CNC or import system	Drive System	AC Servo Drive
idle speed	≤12000 mm/min	cutting gas	O₂/C₃H₄,O₂/C₂H< sub>2Natural gas, etc.
cutting speed	100mm/min-750mm/min	Cutting thickness	6mm-300mm

Customized hotline：+86-138-0150-2230

Boda Product Video Demonstration

The CNC flame cutting machine is a classic model that our company has sold all over the world for 20 years, with a cumulative sales of more than 8,000 units and perfect performance. The whole machine runs reliably and stably, and is the model of choice for carbon steel blanking customers.
