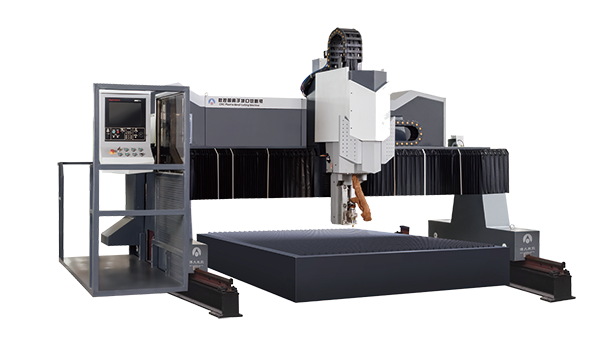

High Performance CNC Plasma Bevel Cutting Machine_Jiangsu Boda CNC Complete Equipment Co., Ltd.

Product parameter

20~30 % Work efficiency increases linearly
30-50 % Artificial Reduction

1-5 % Improve plate utilization

Reduce energy consumption Effectively reduce energy such as gas, electricity, and wearing parts consume

22 years of research5 technology upgrades

Export to 40 countries, 50 4S stores around the world, 10000 users to witness together!

Design

Beam imported linear guide, "L-shaped over-positioning" technology installation, extremely high precision, 400mm ultra-wide mobile body. The rotating head adopts high-precision combined turntable bearing, rotation-yaw motion mode, double linkage, and harmonic reducer. The product has won a number of national patents.
Structure

The structure is atmospheric and durable. The imported high-precision gantry pentahedron machining center is used for one-time positioning and processing, which has high strength, rigidity and precision. Torch Collision Protection: Magnetic anti-collision, not afraid of hitting the gun!
Features

The frame is designed with heavy-duty reinforced structure, with good strength and high running speed. Saving materials, saving labor, improving efficiency, intelligent, one-click cutting.

A strong R&D team ensures the quality and technology of the equipment;

Sophisticated equipment and complete technology ensure the accuracy of the equipment;

Strict on-site management and testing ensure its excellent workmanship;

The perfect after-sales service team ensures the stable operation of the equipment;

Product core parameters

Standard Specifications of Machine Tool		Control device		Cutting device		Appendix		Precision quality
Processing steel plate size range	According to customer needs	Control System	Treasure	Plasma	Fine cutting plasma (import)	Soot purification device	Cutting form detection standard	Fine cut
Base rail (longitudinal)	Grinding rails				LH fine cutting plasma (domestic)	Lubrication device
Gantry rail (horizontal)	Linear Guides	Drive Servo Motor	Panasonic Servo			Laser pointing device
Machine tool gantry structure	Moving beam gantry		A6 bus	Torch angle control device	Fine cutting plasma (import)	Warning Light	The whole machine operation test standard	Factory standard
slewing mechanism	Bevel cutting	Cutting torch configuration	Independent arc voltage height adjustment		LH fine cutting plasma (domestic)	Industrial air conditioner		Other
Cutting torch configuration	Plasma		System-integrated arc voltage height adjustment

Customized hotline：+86-138-0150-2230

Boda Product Video Demonstration

The high-performance CNC plasma bevel cutting machine is one of the powerful representative works launched by the company based on 20 years of experience in manufacturing CNC cutting machines and combining domestic and foreign technologies. Key technology: multi-axis linkage numerical control system, rotary device, newer programming software of groove CNC library and newer plasma technology.
