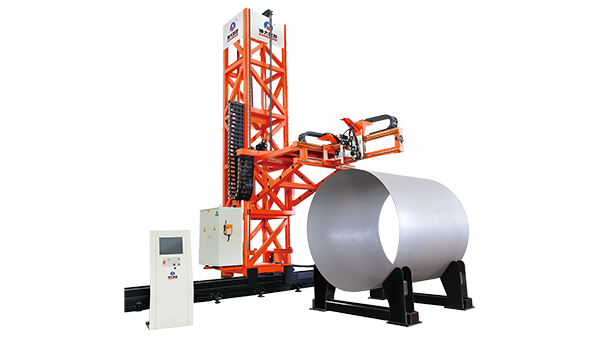

CNC Intersecting Pipe Cutting Machine (big diameter)_Jiangsu Boda CNC Complete Equipment Co., Ltd.

Product parameter

22 years of research5 technology upgrades

Export to 40 countries, 50 4S stores around the world, 10000 users to witness together!

Design

Diameter up to 4500mm! CNC system with RTCP function The CNC system is equipped with RTCP function to realize height and angle compensation follow, no matter how big the bevel angle is, it can ensure the same height of the gun and the pipe.
Structure

The machine adopts the main body of steel structure, with beautiful appearance and good dynamic performance. It adopts ETHERCAT bus control system, which makes man-machine exchange more convenient.
Features

Three-dimensional software docking, automatic calculation, saving labor and material, high efficiency, Integrated design of the whole machine, easy installation and debugging, good accuracy retention.

A strong R&D team ensures the quality and high technology of the equipment;

Sophisticated equipment and complete technology ensure the accuracy of the equipment;

Strict on-site management and testing ensure its excellent workmanship;

The perfect after-sales service team ensures the stable operation of the equipment;

Product core parameters

Name	Parameter value	Name	Parameter value
The maximum diameter	4500mm	Control System	EtherCAT bus control, multi-axis, with RTCP function, height and angle compensation follow the cutting beam + cutting head: independent axis control
Cutting method	Plasma or flame, straight or bevel cut	Nesting software	3D software docking, automatic calculation

Customized hotline：+86-138-0150-2230

Boda Product Video Demonstration

BD series CNC large-diameter pipe cutting machine is newly developed by our company and is a special automatic cutting equipment for large-diameter round pipes specially developed for the steel furnace pressure vessel manufacturing industry and the chemical equipment industry. This equipment fundamentally solves the problems of traditional manual intersecting lines, such as complicated process, low cutting efficiency and low processing accuracy, and promotes the development of pipeline technology in the industry.
