Gantry Style CNC Intersecting Pipe Cutting Machine_Jiangsu Boda CNC Complete Equipment Co., Ltd.

Product parameter

22 years of research5 technology upgrades

Export to 40 countries, 50 4S stores around the world, 10000 users to witness together!

Design

The whole machine is integrated design, with many models, convenient installation and debugging, and good accuracy retention.
Ability

During cutting, the movement of the trolley and the rotation of the pipe are controlled by the CNC system, and the ends and holes of the pipe are fully automatically CNC cut. The torch swinging device can be added to adjust the trajectory of the intersecting line and the angle of the torch to form a good welding groove cutting surface.
Features

Three-dimensional software docking, automatic calculation, saving labor and material, high efficiency, stable operation of the whole machine, long life, simple operation and high work efficiency.

A strong R&D team ensures the high quality and technology of the equipment;

Sophisticated equipment and complete technology ensure the accuracy of the equipment;

Strict on-site management and testing ensure its excellent workmanship;

The perfect after-sales service team ensures the stable operation of the equipment;

Product core parameters

Name	Parameter value	Name	Parameter value
Processing pipe size range	According to customer needs	Processing tube form	Round tube
Base form	Gantry	Working head clamping movement	Fixed clamping
Tube support bracket	Mobile carrier	torch configuration	Plasma
Custom Control System	3 axes, 2-3 axes linkage	Drive Servo Motor	Mitsubishi Servo
Central control module	Mitsubishi or other	Torch height control	Height adjustment device control
Torch angle control device	Cutting torch lifting device, cutting torch groove control device	Cut form	Vertical cut
The whole machine operation test standard	Factory standard

Customized hotline：+86-138-0150-2230

Boda Product Video Demonstration

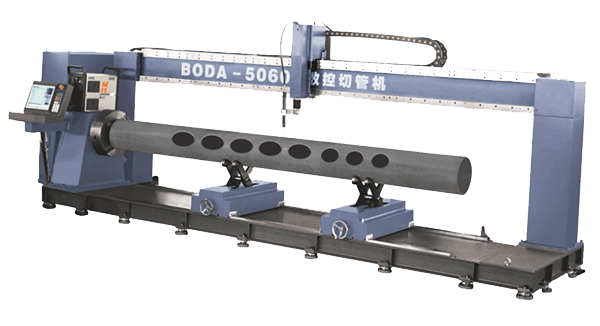

Boda CNC gantry type CNC intersecting line pipe cutting machine The main body of the model adopts a gantry type structure, which is arranged in parallel with the pipe. The gantry is equipped with a mobile trolley lifting device; it is fixed to hold the flame or plasma cutting torch. During cutting, the movement of the trolley and the rotation of the pipe are controlled by the CNC system, and the ends and holes of the pipe are fully automatically CNC cut. The torch swing device can also be added to adjust the intersecting line trajectory and the angle of the torch to form a good bevel cutting surface for welding. This product is widely used in: the manufacture of pipelines in petrochemical natural gas, boiler pressure vessels, water conservancy and electric power and other industries, as well as the manufacture of pipe frame steel structures in building steel structures.
